Useful depiction relevant to Distinti's New Wave Model, sloshing back and forth from Potential to Kinetic and back again.

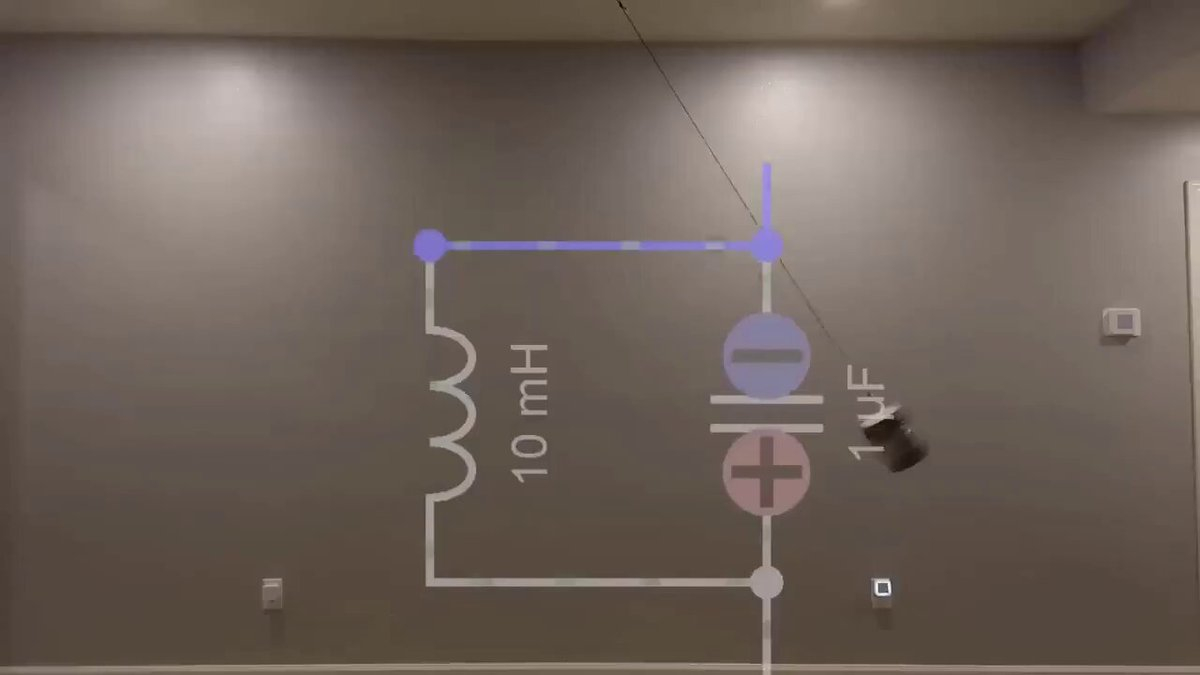

https://x.com/e_to_tha_i_pi/status/1997018571239837799Effective visualization technique of an oscillating pendulum and an "LC tank" electrical circuit with an inductor.
In the pendulum, mass oscillates through space while energy is sloshing between gravitational potential energy and kinetic energy.
In an LC tank, charge oscillates through the circuit while energy sloshes between the magnetic field (in the inductor) and the electric field (in the cap).
In an LC tank, charge oscillates through the circuit while energy sloshes between the magnetic field (in the inductor) and the electric field (in the cap).
